SORALUCE TR-M multitasking centre

  • High performance capacity in milling, turning and grinding in a single set-up.
  • Advanced SORALUCE technology geared towards maximising productivity, precision and customisation: DAS+, Chip Breaker, DPS, DHC, Accura Heads and Adaptive Control
  • Multitasking machine: a milling, turning and grinding solution in a single set-up
  • Ø 1600 / 1400 mm turning table for turning and milling operations
  • Heavy duty machine, supporting workpiece loads of up to 10,500 kg for milling and 3,250 for turning and grinding
  • SORALUCE head technology: a highly reliable, extensive range of SORALUCE multitasking, enabling milling, turning and grinding operations
  • Automatic tool changing system
  • Specific cycles for grinding
  • SORALUCE Digital, Data System: a comprehensive monitoring package with continuous information of machine and process status
  • Long-lasting precision, resulting from a strict design and assembly process
  • Optimal stiffness and mechanical stability, providing high stock removal capacity for roughing operations
  • Great precision and efficiency with the high torque, direct drive spindle motor
  • High dynamics with speeds of up to 35 m/min, acceleration of 2 m/s2 and working feed force of 16000 N on all axes
  • Enhanced productivity and precision for components belonging to the moulds and dies and precision engineering industries
  • Total machine concept design: complete working area analysed for optimal comfort, safety and ergonomics (maintenance spots, operator area)

Characteristics



TR-M 30

TR-M 35

Table area

mm

Ø 1600

3500 x 1450 (Ø 1600)

Swing (max)

mm

Ø 2300

Table speed range

min-1

10 ÷ 400

Table spindle power

kW

81

Table capacity

kg

10500 by milling / 3250 by turning

Longitudinal traverse "X" axis

mm

2500

3500

Vertical traverse "Z" axis

mm

16000

Cross traverse "Y" axis

mm

1300 / 1500

Spindle power

kW

43

Spindle speed range

min-1

4000 / 5000 / 6000 / 7000

Rapid traverse

mm/min

35000

Tool magazine

Nº Tool

20 / 40 / 60 / 80

Customisation

Select your head:

Technical data

  • Automatic indexing head with turning capabilities
  • Up to 4000 rpm with standard steel bearings, or 5000 rpm with hybrid bearings
  • Air-oil lubricated gears
  • The head includes a clutch in the spindle area for positioning and clamping the spindle at any angle for turning operations. The clutch hydraulically clamps and unclamps the rotation of the spindle for turning operations
  • Possibility of working with bigger diameter workpieces, performing turning operations in a diagonal direction (interpolation X/Z axes)
  • The head can be positioned to avoid interferences with the workpiece
  • The use of this head is highly recommended on multitasking machines (milling and turning)
  • 37 kW
  • 2.5° x 2.5° / 0.001° x 0.001°
  • 4000 / 5000 min-1
Multitasking head

Technical data

  • One or two plane Indexing with orthogonal layout
  • Capable of cutting in continuous rotation and with articulations locked
  • Various types of chuck available: ISO-50, HSK-68 & HSK-100
Electrospindle

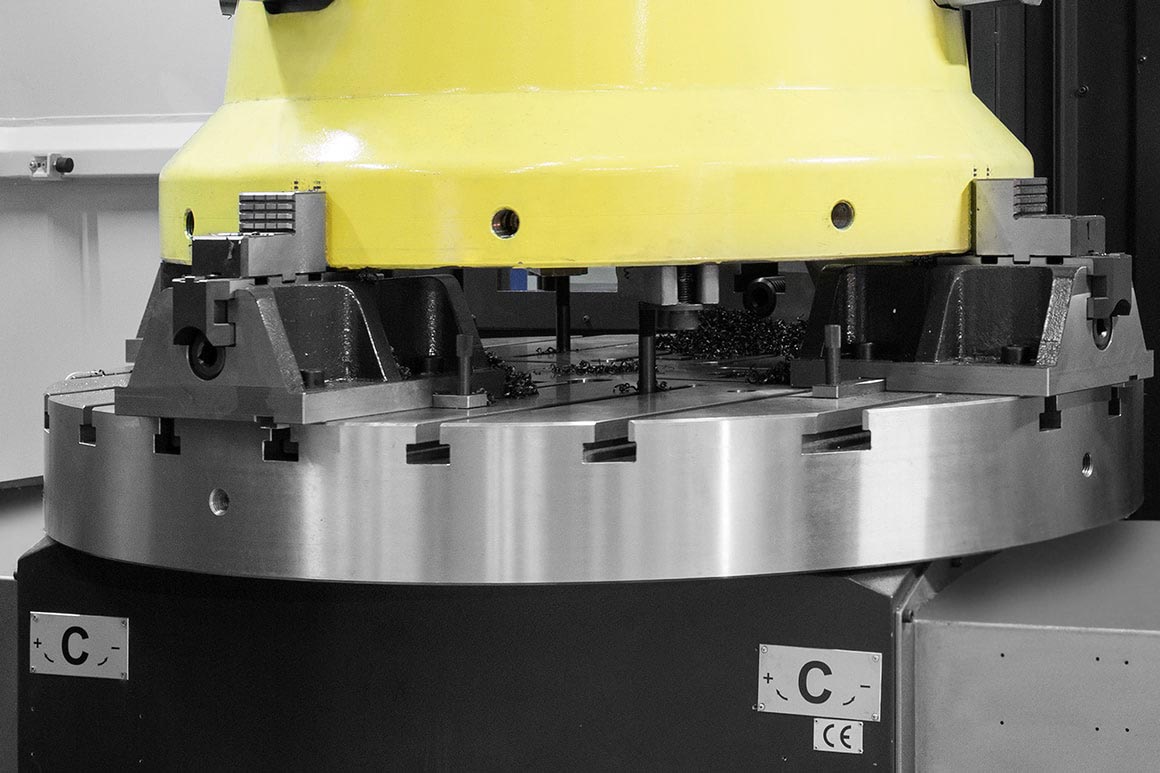

Working Stations

Turning table

Turning table

Applications

soraluce_tr-m_multitasking_centre_milling_turning_grinding
soraluce_tr-m_multitasking_centre_milling_turning_grinding
soraluce_tr-m_multifuncion_centro_fresado_torneado_rectificado
soraluce_tr-m_multitasking_centre_mill_turn_grind
soraluce-tr-m-multitask
soraluce_tr-m_multitasking_fresatrici_tornitura_rettifica
soraluce-tr-m-multitask-centre
