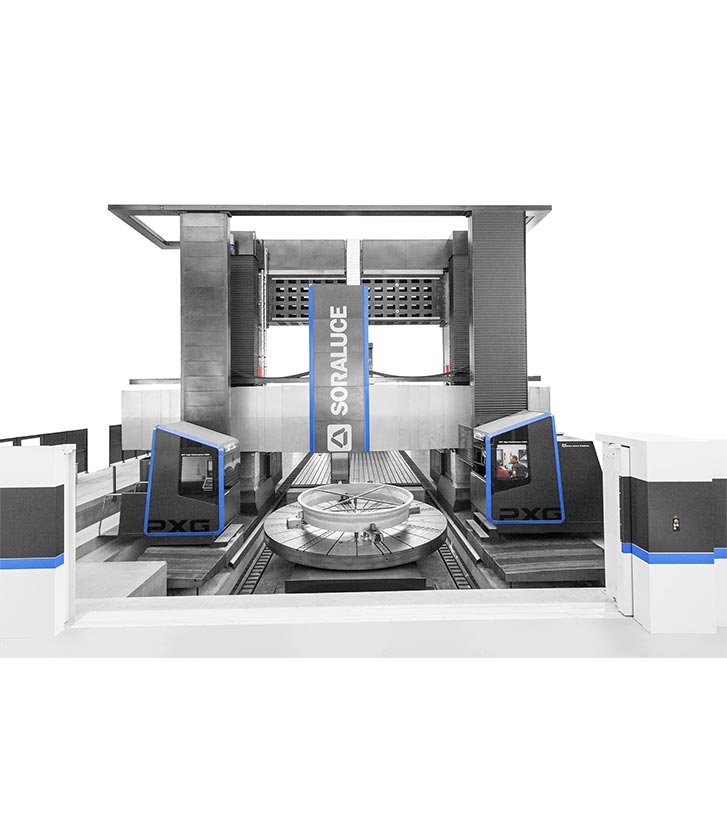

SORALUCE PXG gantry multitasking machine

  • Precision and versatility at a large scale
  • Advanced SORALUCE technology geared towards maximising productivity, precision and customisation: DAS system, Modular Quill, Vertical Ram Balance, Accura Heads, SSV and Adaptive Control.
  • Multitasking machine: a milling and turning solution in a single set-up
  • Automated solutions: integrated palletised workpiece loading and unloading systems and robot-based solutions
  • SORALUCE head technology: a highly reliable, extensive range of SORALUCE quills and heads
  • Automatic head and tool changing systems
  • SORALUCE Digital, Data System: a comprehensive monitoring package with continuous information of machine and process status
  • Travelling cross beam
  • Precise and efficient machining results
  • Excellent dynamics thanks to the rapid travel of the axes
  • High power and torque for high performance machining
  • Improved stability to enable high stock removal for components belonging to the mechanical engineering, energy and capital goods industries
  • Flexible machine architecture facilitating different machine configurations, the use of different work stations and pendulum machining
  • One or two operator’s platforms with their respective control panels, thus allowing the best location of the operator in each operation
  • Total machine concept design: a complete working area analysed for optimal comfort, safety and ergonomics (maintenance spots, operator platform)

Characteristics



PXG

Longitudinal traverse "X" axis

mm

6000 / 8000 / 10000 / n x 2000

Cross traverse "Y" axis

mm

7500 / 8500 / 9500 / 10500

Vertical traverse Ram "Z axis"

mm

2500 / 3000

Vertical traverse Cross beam "W"

mm

2000 / 3000 / 4000

Spindle power

kW

60 / 81 / 101

Spindle speed range

min-1

Up to 7000

Rapid traverse

mm/min-1

X = 12000, Y/Z = 20000

Tool magazine

No. tools

80 / 120 / 180

Customisation

Select your head:

Technical data

It enables for:

  • Automatic tool changing.
  • Automatic head changing.
  • Internal / external cooling system (no external tubes exposed to chips).
  • Suitable for any type of taper and pull-studs.
  • Different clamping forces for different tools.
  • Suitable for setting different accessories.
  • Flexibility
  • Interchangeability
  • Options
  • C Axis
  • Maintainability
  • 43 / 46 / 49 / 81 / 106 kW
  • 2000 / 3000 / 4000 / 5000 min-1
Fixed horizontal boring head

Technical data

It enables for:

  • Automatic indexing of vertical and diagonal articulations.
  • Automatic tool changing.
  • Automatic head changing.
  • Internal / external cooling system.
  • Suitable for any type of taper and pull-studs.
  • Different clamping forces for different tools.
  • Suitable for setting different accessories.
  • 32 / 43 / 46 / 55 kW
  • 2.5° x 2.5° / 1° x 2.5° / 0.001° x 0.001°
  • 4000 / 5000 / 6000 / 7000 min-1
Universal head

Technical data

It enables for:

  • Automatic indexing of vertical and horizontal articulations.
  • Automatic tool changing.
  • Automatic head changing.
  • Internal / external cooling system.
  • Suitable for any type of taper and pull-studs.
  • Different clamping forces for different tools.
  • Suitable for setting different accessories.
  • 32 / 37 / 43 / 46 kW
  • 1º x 1º
  • 5000 / 6000 / 7000 min-1
Orthogonal head

Technical data

  • 5-axis continuous indexing head, indexing at 0,001ºx0,001º
  • Full 5 axis machining or use for fast positioning
  • Automatic tool changing.
  • Automatic head changing
  • Cooling through the spindle
  • Different clamping forces for different tools.
  • Suitable for setting different accessories.
  • Spindle locking option (turning operations)
  • Available for Soraluce FP, FR and FXR models
  • 37 kW
  • 0.001° x 0.001°
  • 7000 min-1
5 axis head

Technical data

  • Automatic indexing head with turning capabilities
  • Up to 4000 rpm with standard steel bearings, or 5000 rpm with hybrid bearings
  • Air-oil lubricated gears
  • The head includes a clutch in the spindle area for positioning and clamping the spindle at any angle for turning operations. The clutch hydraulically clamps and unclamps the rotation of the spindle for turning operations
  • Possibility of working with bigger diameter workpieces, performing turning operations in a diagonal direction (interpolation X/Z axes)
  • The head can be positioned to avoid interferences with the workpiece
  • The use of this head is highly recommended on multitasking machines (milling and turning)
  • 37 kW
  • 2.5° x 2.5° / 0.001° x 0.001°
  • 4000 / 5000 min-1
Multitasking head

Technical data

  • Special angular heads (railway bogie, motor block, etc.).
  • Special adaptors
Customised head

Technical data

  • NC Facing heads
  • Angular heads
  • 5 axis heads
  • Electrospindles
Other heads integration

Technical data

  • Heavy duty angular head
  • Angular and horizontal extensions
  • Turning adaptors
  • O&G oriented heads
  • Rotary couplings
Other standard head solutions

Technical data

SORALUCE offers a wide range of tool holders positioned by a Hirth coupling and locked in place by 4 hydraulic clamping devices, thus ensuring a high degree of repeatability and smooth, leakage-free coolant and fluid recirculation.

  • Axial
  • Radial
  • Annual
  • 4 turning tools in 1 heads
  • Eccentric milling head
  • “Y axis head
  • “B” axis head
Turning tool holders

Working Stations

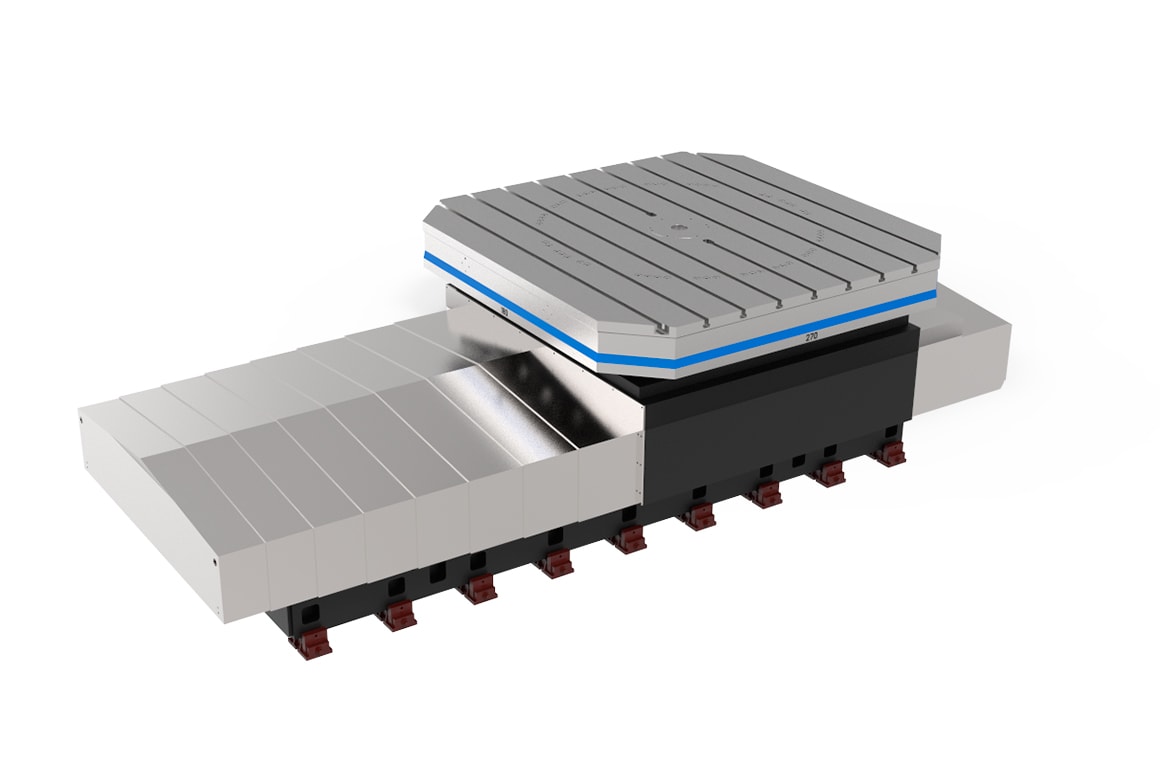

Rotary and rotary-travelling tables

Rotary and rotary-travelling tables

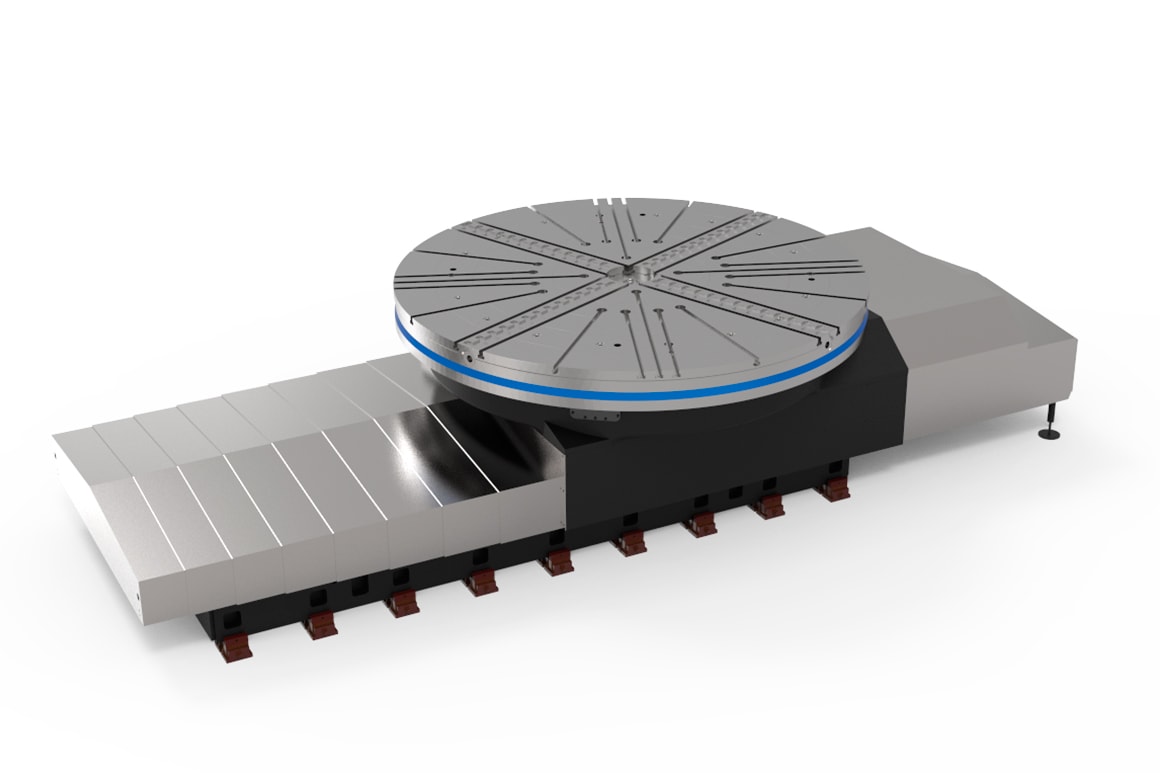

Turning and rotary-turning tables

Turning and rotary-turning tables

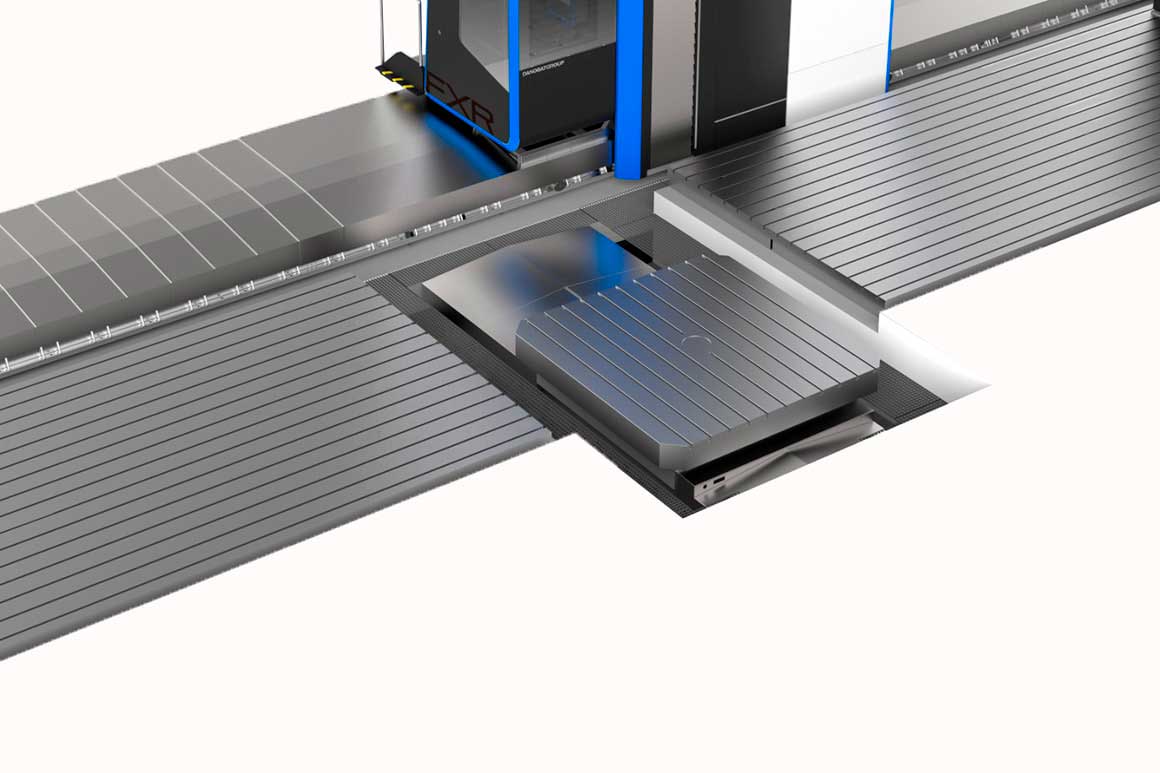

Floor plates

Floor plates

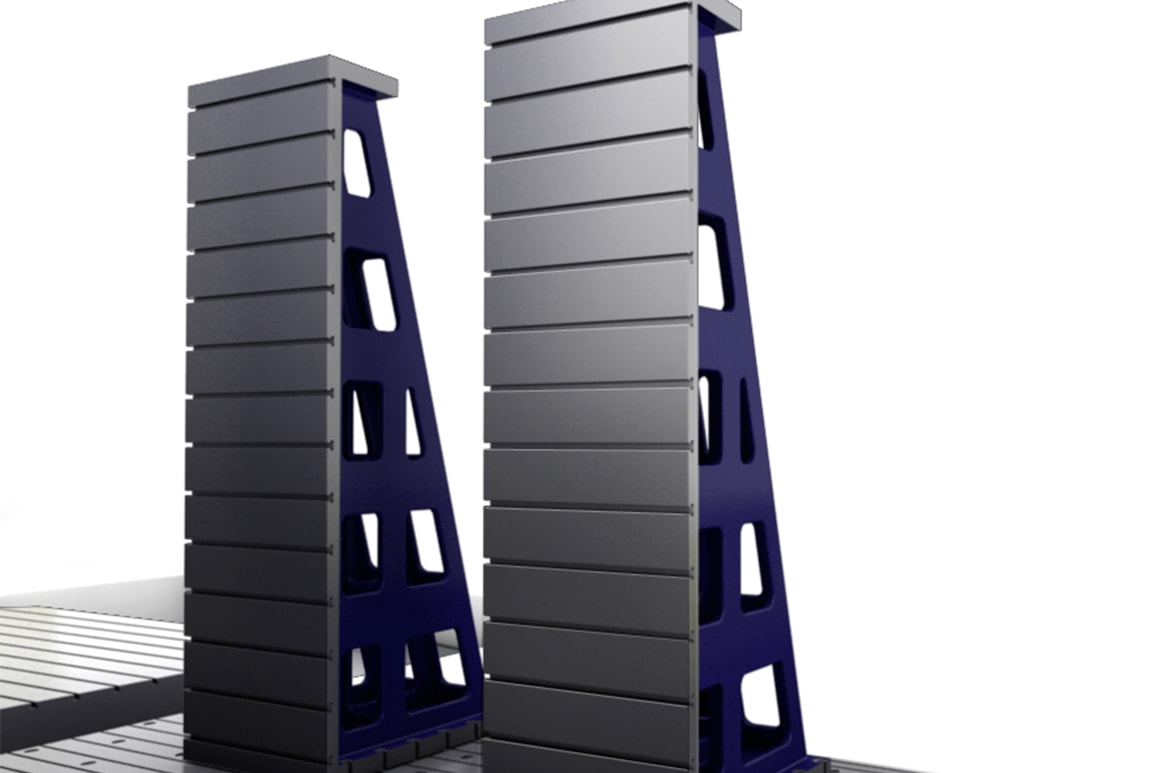

Angle plates

Angle plates

Applications

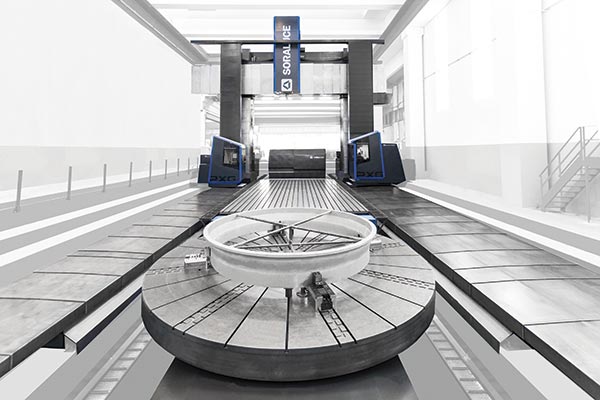

PXG Grantry Portal
PXG Grantry Portal

Machining Test

Try the machining test service on our machines with your workpieces. Put the capacity of our machines and our process team to the test, to be absolutely sure about your investment.

Challenge us
