SORALUCE FP-W floor type milling boring machine
- Improved flexibility and high dynamics for enhanced performance.
- Advanced SORALUCE technology geared towards maximising productivity, precision and customisation: DAS system, Accura Heads, SSV and Adaptive Control.
- Multitasking machine: milling and turning solution in a single set-up

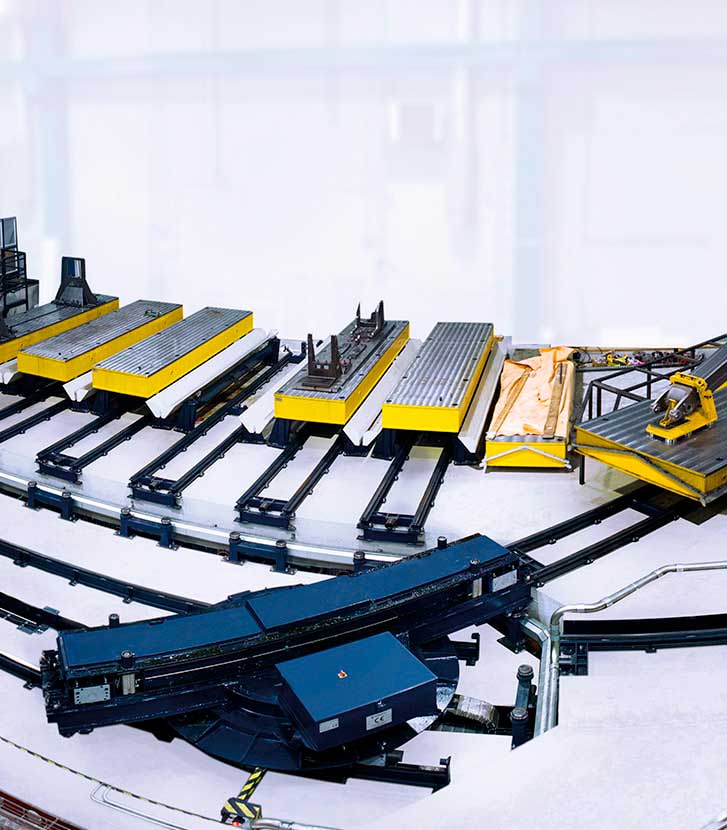

- Automated solutions: integrated palletised workpiece loading and unloading systems and robot-based solutions
- SORALUCE head technology: highly reliable, extensive range of SORALUCE quills and heads
- Automatic head and tool changing systems
- SORALUCE Digital, Data System: comprehensive monitoring package with continuous information of machine and process status
- Great precision and efficiency with the high-torque, direct drive spindle motor
- High dynamics with speeds of up to 35 m/min and acceleration of 1 m/s2 (longitudinal) and 1.5 m/s2 (vertical and cross)
- Low gravity centre design providing improved stability
- Enhanced productivity and precision for components belonging to industrial vehicles, moulds and dies, capital goods and precision engineering industries

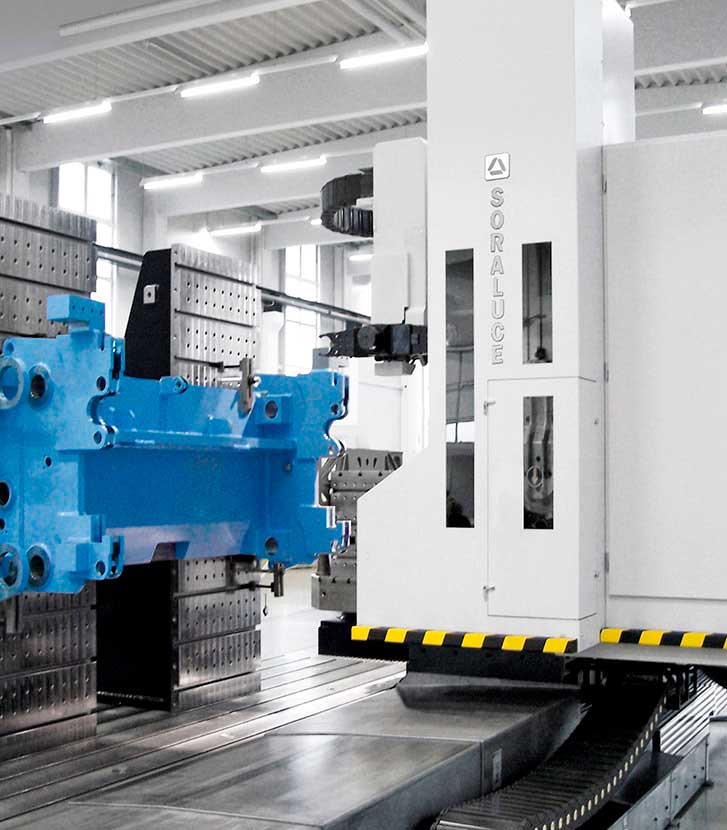

- Flexible machine architecture facilitating different machine configurations, the use of different work stations and pendulum machining
- Total machine concept design: complete working area analysed for optimal comfort, safety and ergonomics (maintenance spots, operator platform)
|
Characteristics |
FP-W | |
|---|---|---|
|
Longitudinal traverse "X" axis |
mm |
4000 ÷ as per request |
|
Vertical traverse "Y" axis |
mm |
2600 / 3200 |
|
Cross traverse "Z" axis |
mm |
1000 / 1500 |
|
Quill diameter |
mm |
130 / 150 |
|
Quill traverse, "W" axis |
mm |
700 / 800 |
|
Spindle power |
kW |
40 / 41 / 53 / 54 |
|
Spindle speed range |
min-1 |
3500 |
|
Rapid traverse |
mm/min |
35000 |
|
Tool magazine |
No. Tools |
40 / 60 / 80 / 100 / 120 |
Customisation
Select your head:
Technical data
It enables for:
- Automatic indexing of vertical and diagonal articulations.
- Automatic tool changing.
- Automatic head changing.
- Internal / external cooling system.
- Suitable for any type of taper and pull-studs.
- Different clamping forces for different tools.
- Suitable for setting different accessories.
- 32 / 43 / 46 / 55 kW
- 2.5° x 2.5° / 1° x 2.5° / 0.001° x 0.001°
- 4000 / 5000 / 6000 / 7000 min-1
Technical data
It enables for:
- Automatic indexing of vertical and horizontal articulations.
- Automatic tool changing.
- Automatic head changing.
- Internal / external cooling system.
- Suitable for any type of taper and pull-studs.
- Different clamping forces for different tools.
- Suitable for setting different accessories.
- 32 / 37 / 43 / 46 kW
- 1º x 1º
- 5000 / 6000 / 7000 min-1
Technical data
It enables for:
- Automatic tool changing.
- Automatic head changing.
- Internal / external cooling system (no external tubes exposed to chips).
- Suitable for any type of taper and pull-studs.
- Different clamping forces for different tools.
- Suitable for setting different accessories.
- Flexibility
- Interchangeability
- Options
- C Axis
- Maintainability
- 43 / 46 / 49 / 81 / 106 kW
- 2000 / 3000 / 4000 / 5000 min-1
Technical data
- 5-axis continuous indexing head, indexing at 0,001ºx0,001º
- Full 5 axis machining or use for fast positioning
- Automatic tool changing.
- Automatic head changing
- Cooling through the spindle
- Different clamping forces for different tools.
- Suitable for setting different accessories.
- Spindle locking option (turning operations)
- Available for Soraluce FP, FR and FXR models
- 37 kW
- 0.001° x 0.001°
- 7000 min-1
Technical data
- Automatic indexing head with turning capabilities
- Up to 4000 rpm with standard steel bearings, or 5000 rpm with hybrid bearings
- Air-oil lubricated gears
- The head includes a clutch in the spindle area for positioning and clamping the spindle at any angle for turning operations. The clutch hydraulically clamps and unclamps the rotation of the spindle for turning operations
- Possibility of working with bigger diameter workpieces, performing turning operations in a diagonal direction (interpolation X/Z axes)
- The head can be positioned to avoid interferences with the workpiece
- The use of this head is highly recommended on multitasking machines (milling and turning)
- 37 kW
- 2.5° x 2.5° / 0.001° x 0.001°
- 4000 / 5000 min-1
Technical data
- Special angular heads (railway bogie, motor block, etc.).
- Special adaptors
Technical data
- NC Facing heads
- Angular heads
- 5 axis heads
- Electrospindles
Technical data
- Heavy duty angular head
- Angular and horizontal extensions
- Turning adaptors
- O&G oriented heads
- Rotary couplings
Working Stations

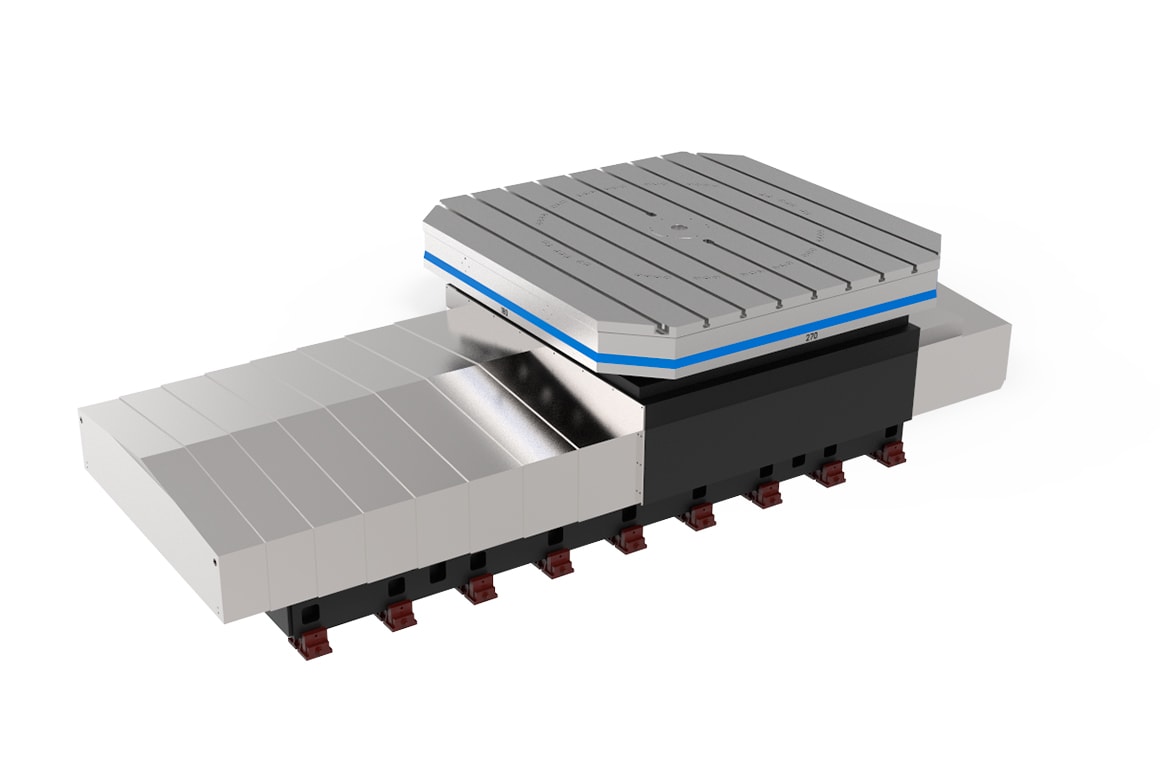

Rotary and rotary-travelling tables

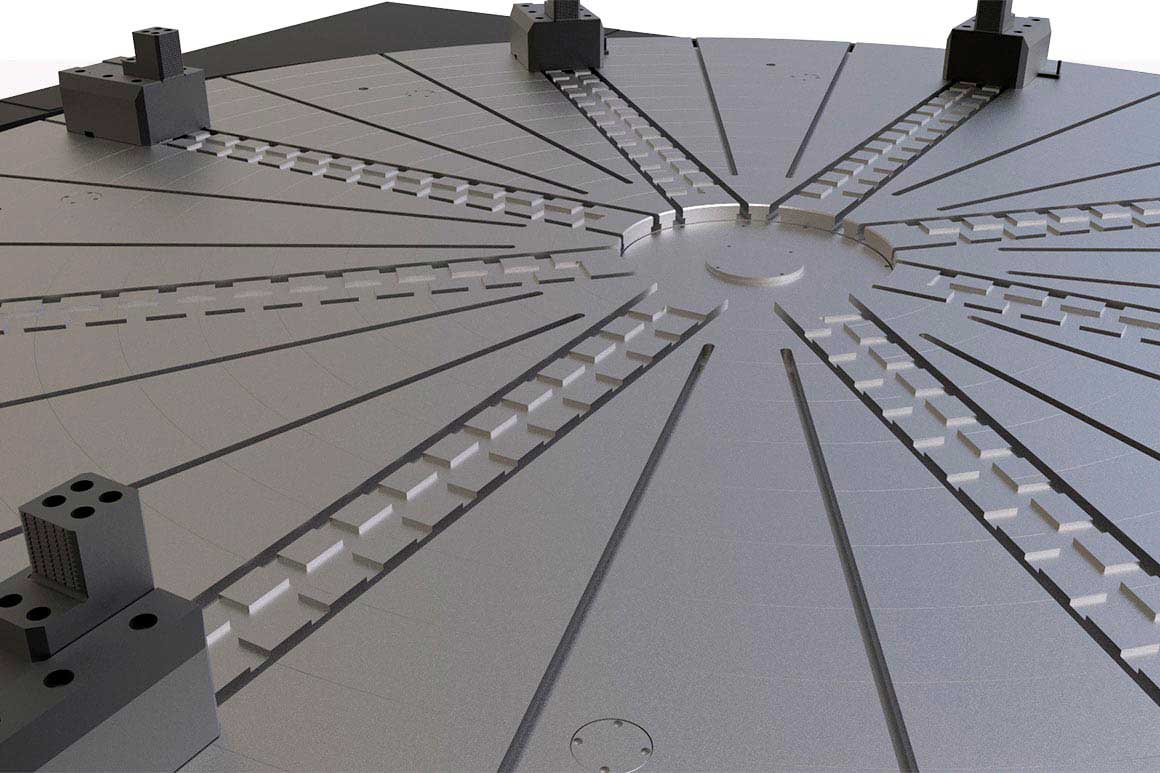

Turning and rotary-turning tables

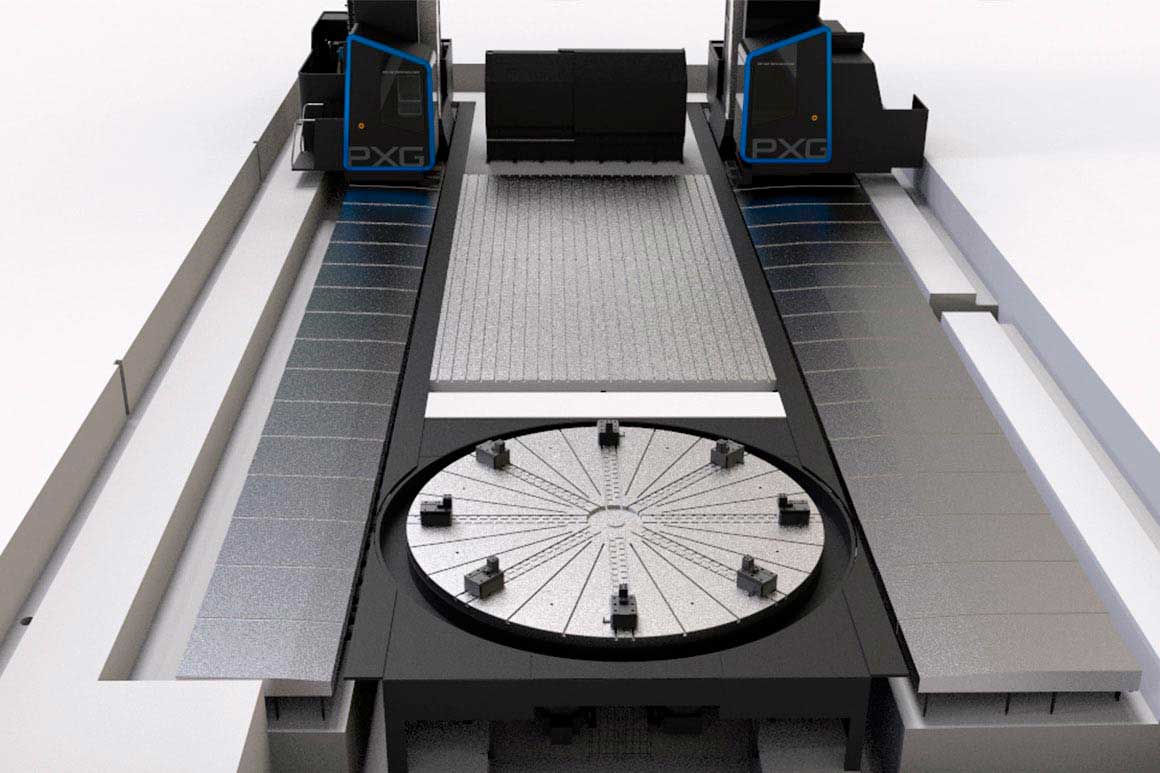

Floor plates

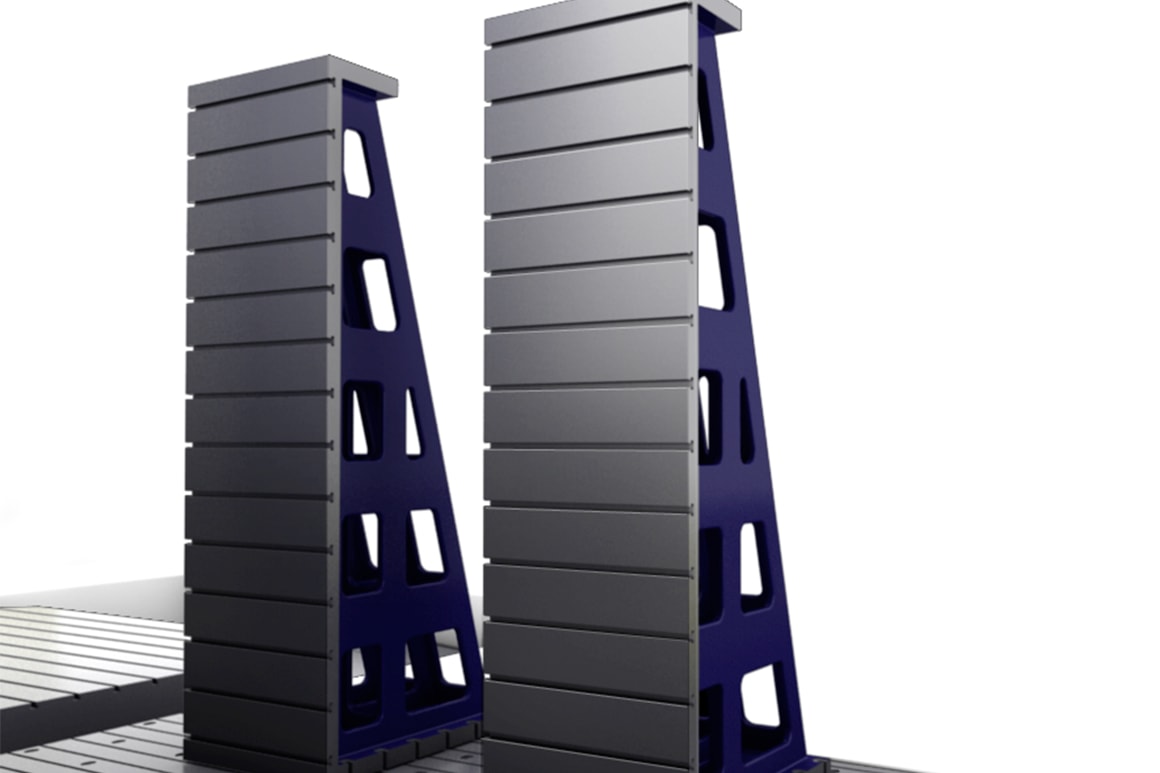

Angle plates
Images and Video

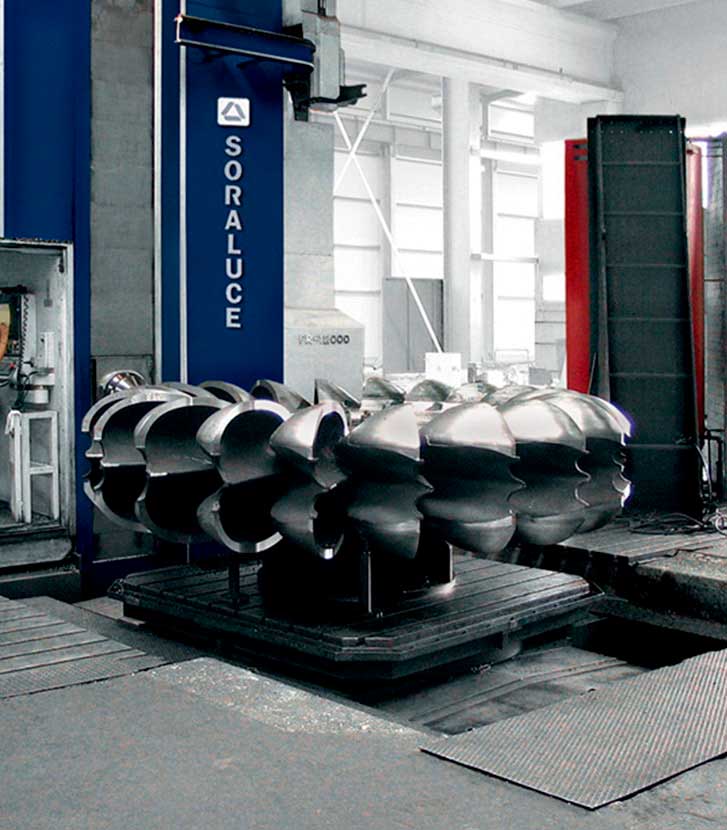

Applications
